Terraces 01 by Carter Williamson

A multi-dwelling housing (terrace) design for 3 homes arranged side-by-side. The design reimagines the traditional Victorian terrace for contemporary living.

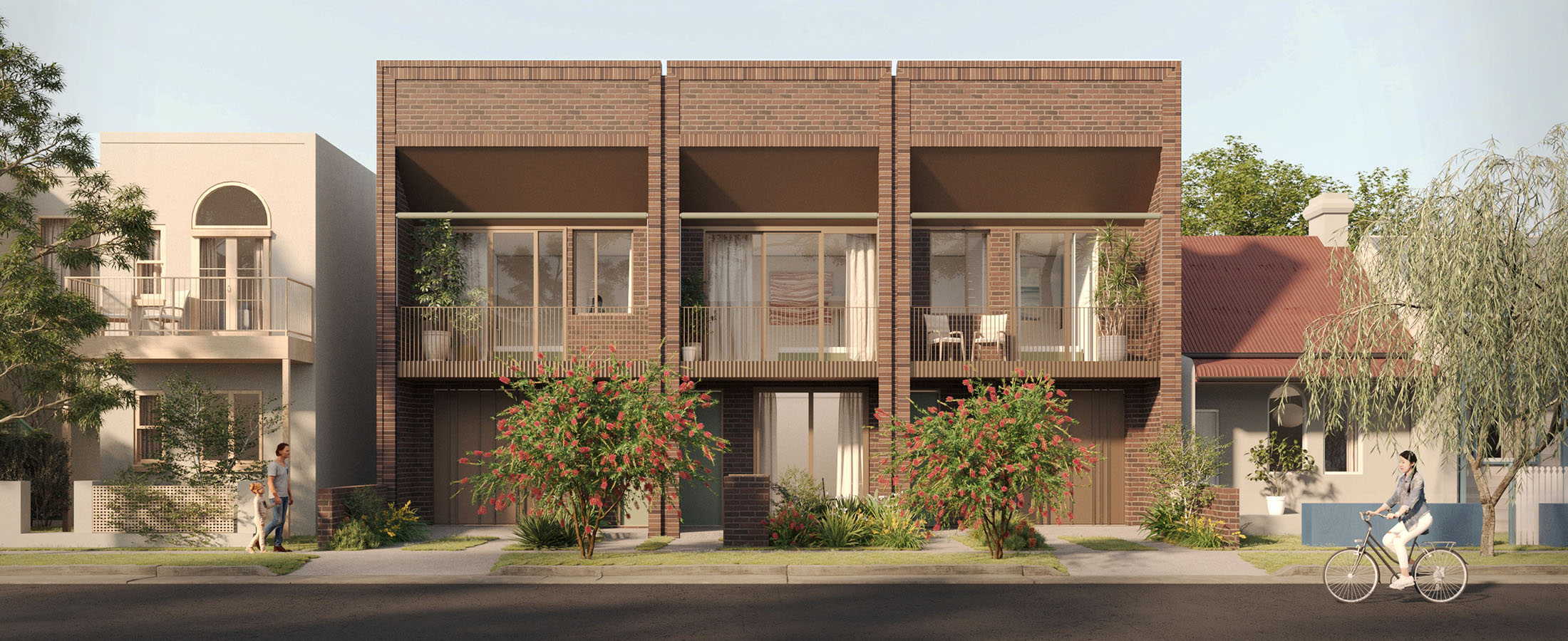

Terraces 01 design by Carter Williamson street view of 3 2-storey terraces with 2 houses on either side with less detail. Credit: Carter Williamson

Spacious Victorian-style terraces reimagined for contemporary living with private courtyards in the centre of each home.

Terraces 01 by Carter Williamson is a multi-dwelling housing (terrace) design for a minimum of 3 homes arranged side-by-side. The 2-storey brick homes have their own street frontage with a welcoming covered entryway.

Each terrace has an internal courtyard to bring light and fresh air into the home. The bathrooms and laundry are at the centre of the design so that the living room can open onto a large rear garden. Well-placed skylights and balconies ensure each home is light-filled and comfortable.

The pattern drawings have options for adapting the base design to suit your site and preferences. The enclosed garage can be swapped for a flexible front room. There are also alternative layout options for the kitchen, first-floor bedroom and ensuite. In low- and mid-rise housing areas, an extra attic bedroom or a private roof terrace can be added.

The base pattern is for 3 homes on a single lot. In new neighbourhoods, it can be adapted to include up to 7 connected homes. A garage can be added to sites with rear lane access and parking.

Purchase the pattern design

Key metrics

Each pattern has a compact design for Low and Mid Rise (LMR) Housing Areas and a standard design for non-LMR Housing Areas. The metrics below reflect the compact design.
  • Number of dwellings3
  • Bedrooms per dwelling3-4
  • Bathrooms per dwelling2.5
  • Parking spaces per dwelling0.50
  • Floor Area per dwelling130 m²
  • zoom_in_mapMinimum lot area500 m²
  • Minimum lot width15 m
  • Number of storeys2
  • Floor-Space Ratio (FSR)0.79
  • Livability ratingSilver
  • Site gradient front to back0-1.2 m

Key metrics

Each pattern has a compact design for Low and Mid Rise (LMR) Housing Areas and a standard design for non-LMR Housing Areas. The metrics below reflect the compact design.

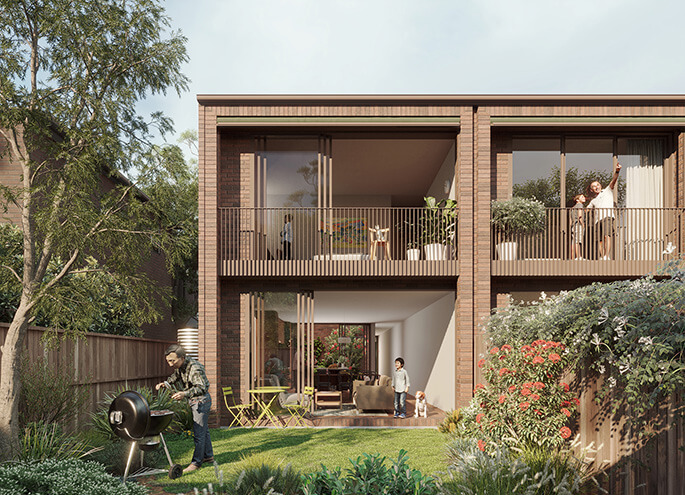

  • Terraces 01 design by Carter Williamson render rear of 3 terraces with 3 balconies and fence blocking view into backyard. Credit: Choi Render
    Illustrative street view, retractable blinds provide control over the amount of light received.

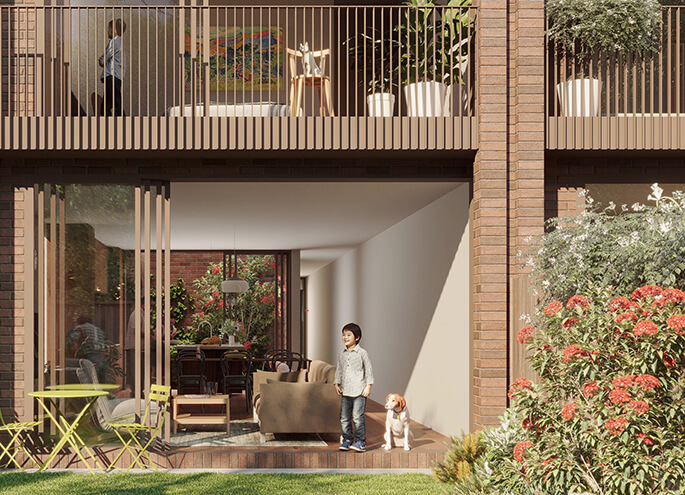

  • Terraces 01 design by Carter Williamson render view of backyard toward the interior of the home. Credit: Choi Render
    Illustrative rear view, first floor balcony provides an outlook onto the garden.
  • Terraces 01 design by Carter Williamson render view of backyard into the inside of the home. Credit: Choi Render
    Illustrative rear view, floor to ceiling windows invite light and frame the exterior landscape.

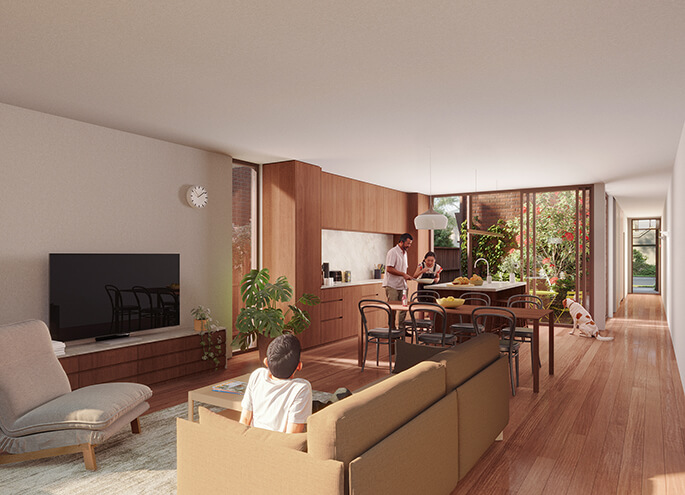

  • Terraces 01 design by Carter Williamson render view from the living room toward the dining area and kitchen. Credit: Choi Render
    Illustrative interior view, open living spaces allow for easy interaction across the home.

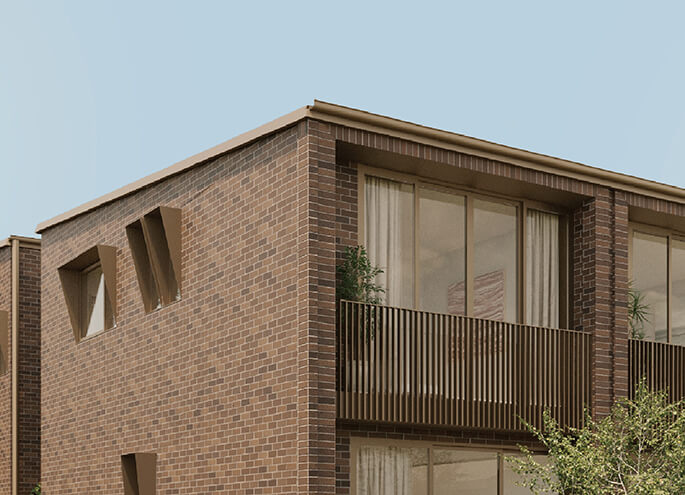

  • Terraces 01 design by Carter Williamson render rear of terrace with close up of balcony and window hoods over windows. Credit: Carter Williamson
    Illustrative rear view, window hoods provide protection from the harsh sun and rain.

Floor plans

Explore the ground and first floor layouts of the compact and standard design. Refer to the pattern pack for more floor plan variations to suit your preferences.

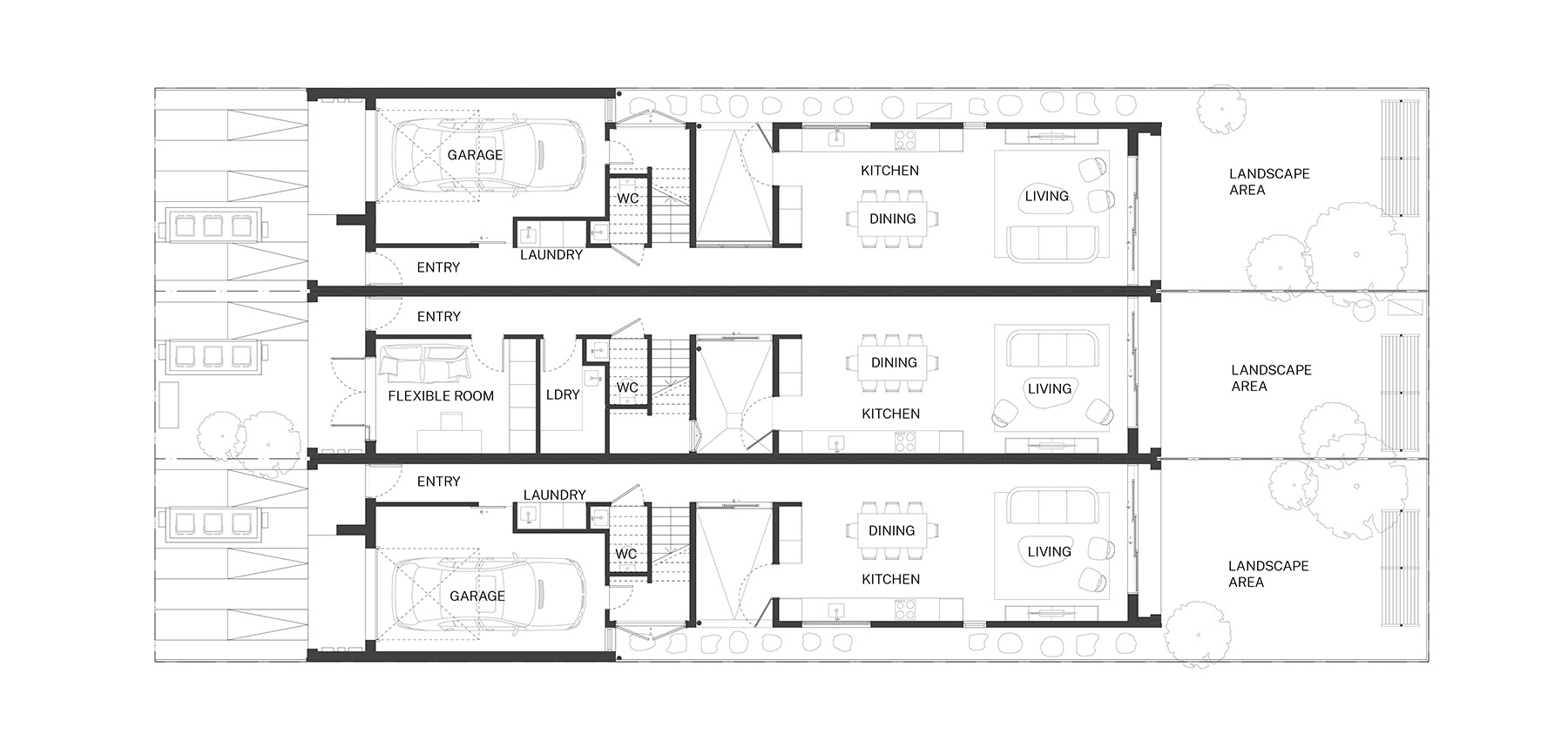

  • Compact design ground plan of the Terraces 01 design by Carter Williamson. Credit: Carter Williamson
    Compact design ground plan of the Terraces 01 design by Carter Williamson.
    Credit: Carter Williamson
    Compact design ground floor plan (not to scale), featuring a central courtyard and a private landscaped area.

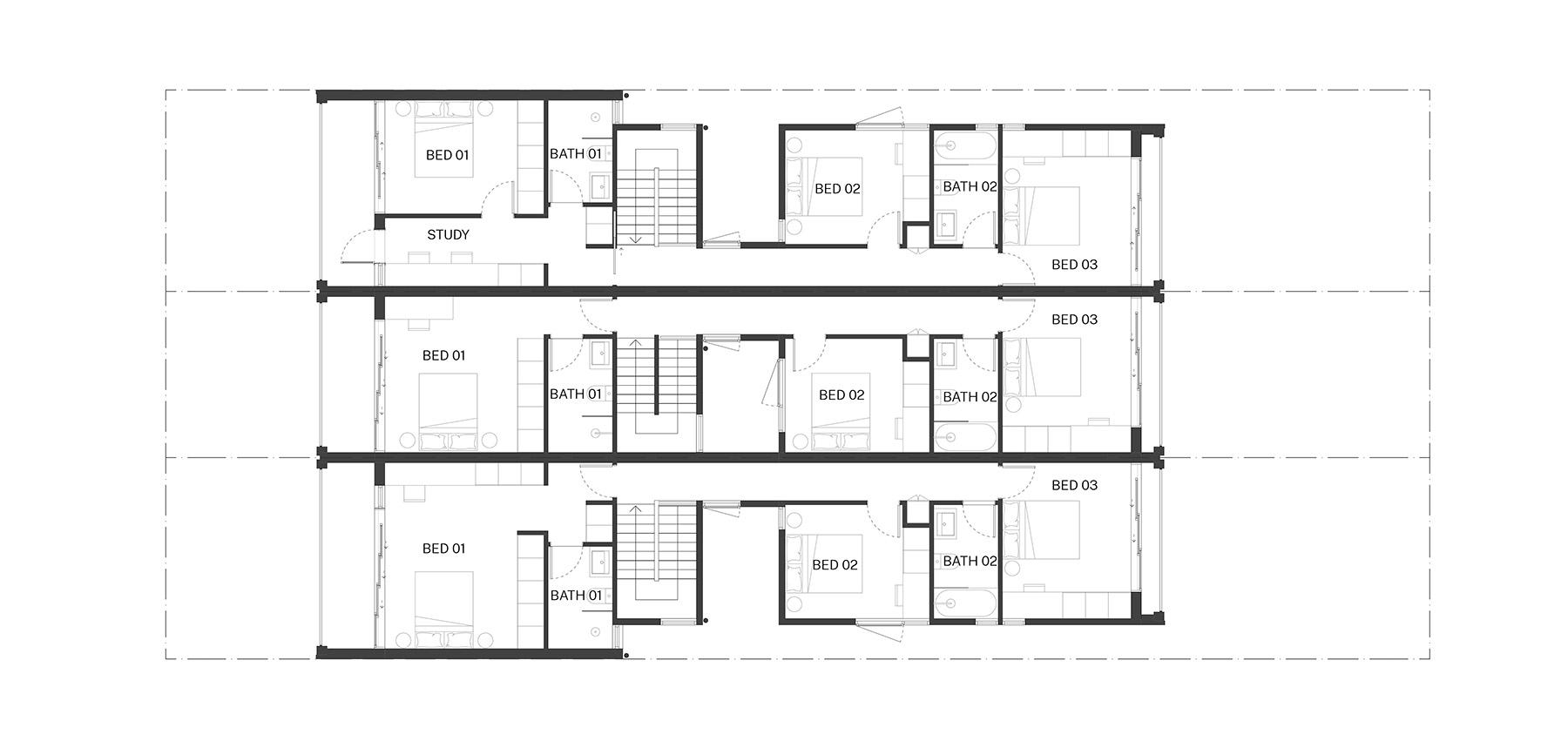

  • Compact design first floor plan of the Terraces 01 design by Carter Williamson. Credit: Carter Williamson
    Compact design first floor plan of the Terraces 01 design by Carter Williamson.
    Credit: Carter Williamson
    Compact design first floor plan (not to scale), each home has two bedrooms with access to a private balcony.

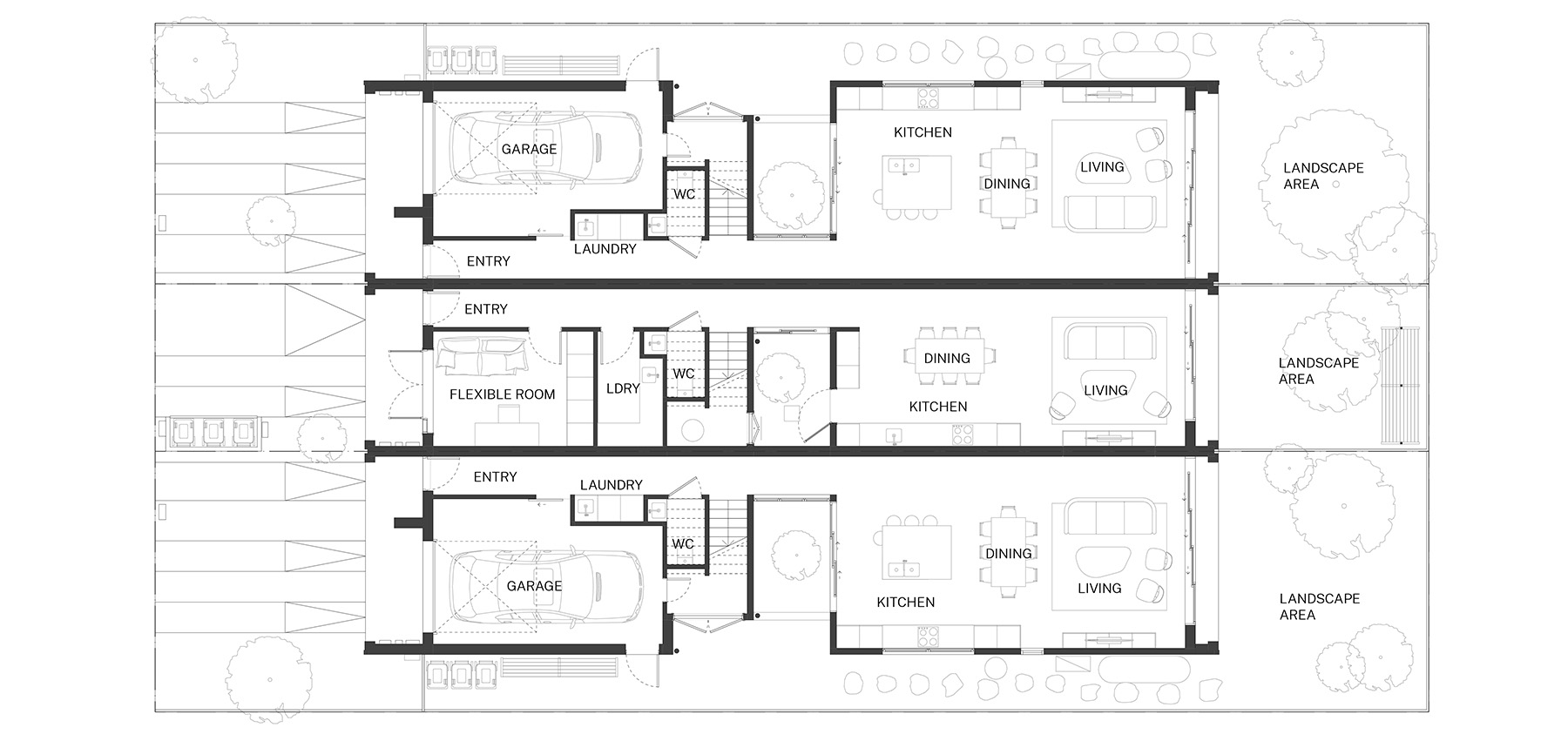

  • Standard design ground plan of the Terraces 01 design by Carter Williamson. Credit: Carter Williamson
    Standard design ground plan of the Terraces 01 design by Carter Williamson.
    Credit: Carter Williamson
    Standard design ground floor plan (not to scale), living rooms connected to the outdoors with a central courtyard and private landscape area.

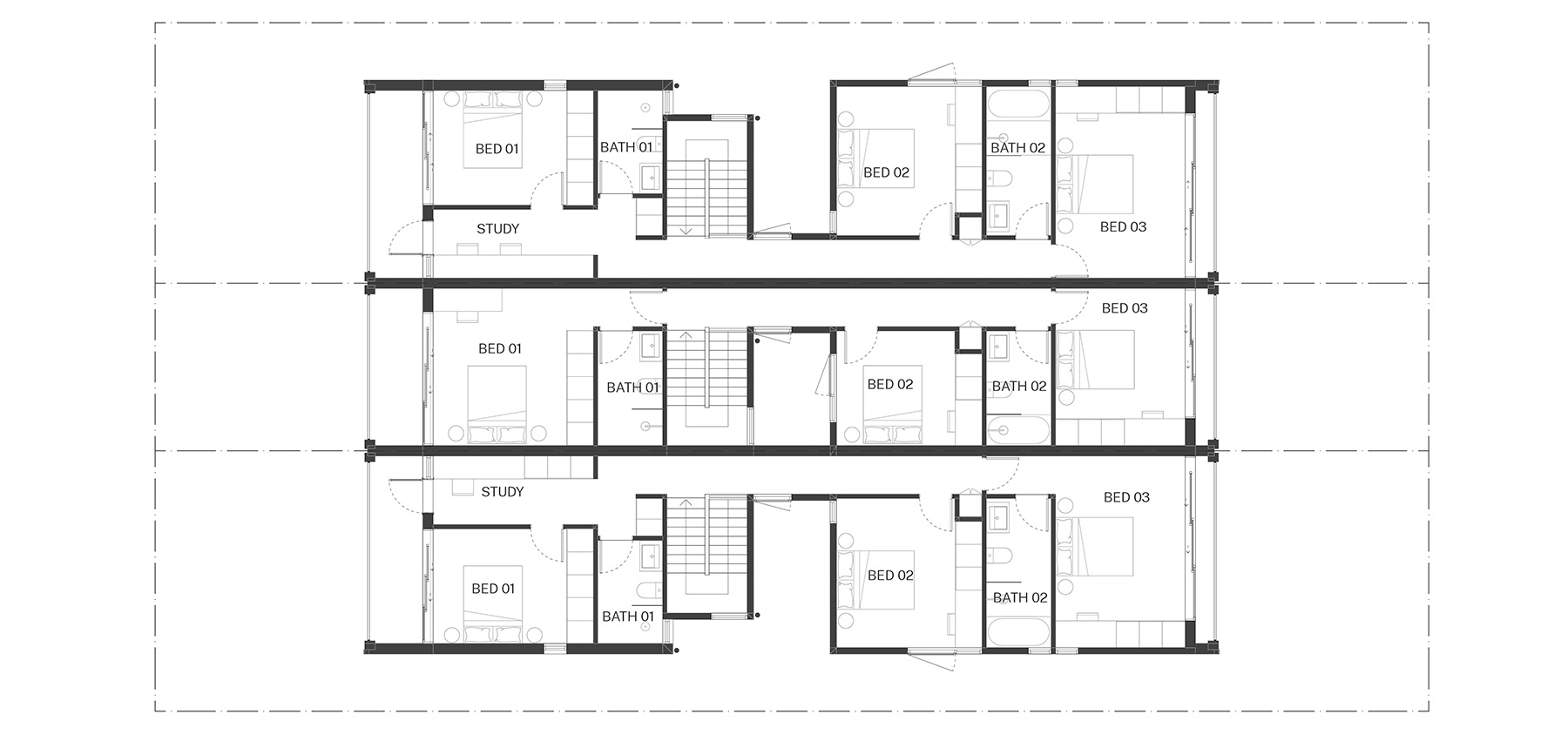

  • Standard design first floor plan of the Terraces 01 design by Carter Williamson. Credit: Carter Williamson
    Standard design first floor plan of the Terraces 01 design by Carter Williamson.
    Credit: Carter Williamson
    Standard design first floor plan (not to scale), each home has two bedrooms with access to a private balcony.

Fixed and flexible features

Fixed features must be included in your planning application. Flexible features can be modified within agreed parameters.

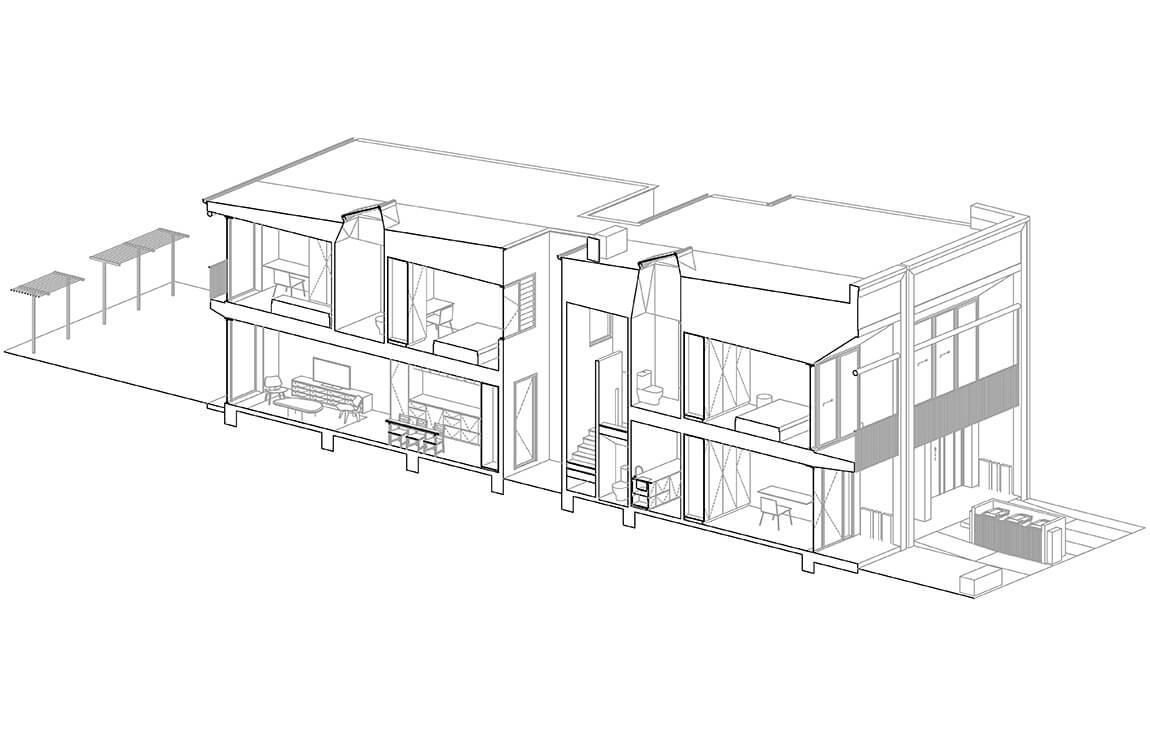

Axonometric section of the Terraces 01 design by Carter Williamson. Credit: Carter Williamson
Tap to explore

  • Fixed features
    • Robust masonry facade

      The facade is built with masonry, recessed entries and a wide banded parapet and can be done in a range of materials.
    • Accessible central courtyard

      The central courtyard brings light into the living space, stairwell and kitchen of each terrace.
    • Rear facade opens to outdoor space

      Large, glazed sliding doors and Juliet balconies connect rear rooms to the outside.
    • Minimum of 3 terraces in a row

      A double height void increases space and light in the heart of the home and is a key organising feature of the layout.
    • Daylight to interior spaces

      The 1.5 m deep porches at both front and rear provide rain and sun protection.

  • Flexible features
    • Ground-floor layouts

      There is a choice of ground-floor layouts, including an enclosed garage, flexible front room or adjusted side setback on corner lots.
    • Retractable blind for sun control

      The external retractable blind can be used to reduce the heat when the buildings face east or west.
    • Alternative kitchen layouts

      The width of the rear living area and layout of the kitchen can be adjusted to suit individual needs.
    • Bathroom and ensuite configurations

      Multiple first-floor bedroom and bathroom layouts are made possible by repositioning partition walls.
    • Car space and garage

      There is hardstand parking in the front setback or the garage. A rear garage is available for sites with laneway parking.
    • Third-floor bedroom

      An extra bedroom can be added in the roof space in low- and mid-rise housing areas.

Materials and character

The pattern is built from brick, adding a traditional element to the overall modern design. Warm and hardy materials contribute to the design's familiar character and can blend into any neighbourhood. Colourful details such as painted soffits, metal balustrades and window frames complement the overall design. Choose from a range of brick colours to suit your style and your neighbourhood.

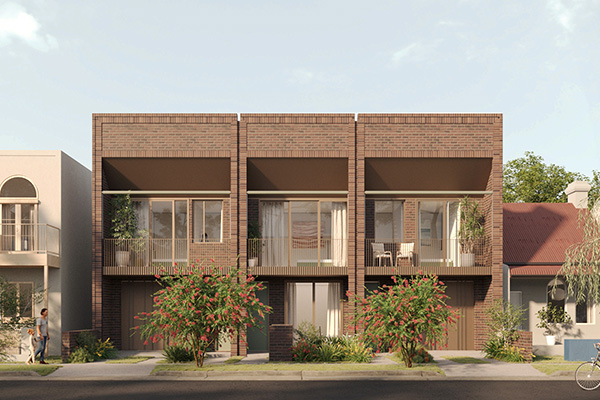

Example render of warm brown bricks and bronzy design details. Credit: Carter Williamson
Example render of warm brown bricks and bronzy design details.
Credit: Carter Williamson
Brown brick

Warm brown bricks and bronze design details create a classic home.

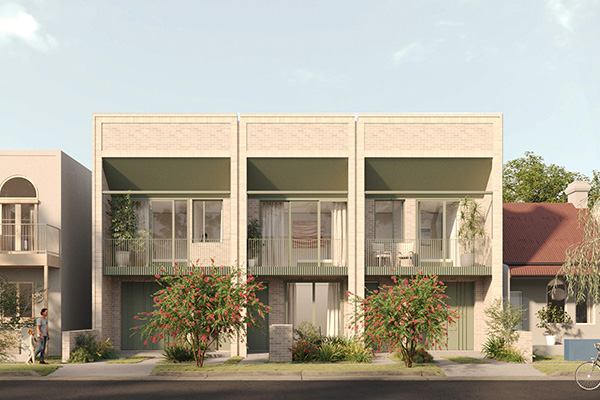

Example render of cream brick with green in framing and balustrades. Credit: Carter Williamson
Example render of cream brick with green in framing and balustrades.
Credit: Carter Williamson
Cream brick

Cream brick is the primary material with pops of green in framing and balustrades.

Example render of modern grey bricks with charcoal details. Credit: Carter Williamson
Example render of modern grey bricks with charcoal details.
Credit: Carter Williamson
Grey brick

Modern grey bricks with charcoal details create a modern, urban look.

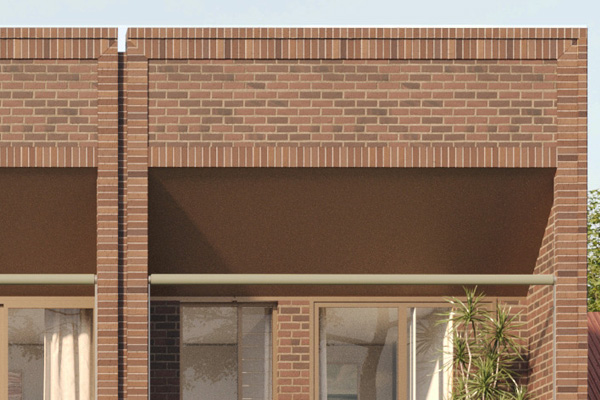

Example render of painted design details complementing the brickwork. Credit: Carter Williamson
Example render of painted design details complementing the brickwork.
Credit: Carter Williamson
Coloured details

Painted design details, like the soffit, complement the robust brickwork.

About the architect

Carter Williamson is an award-winning architectural practice in the inner west Sydney suburb, Summer Hill. The team is made up of individuals from diverse backgrounds and disciplines united by a shared passion for design excellence.

The team’s commitment to creating a supportive, inclusive and well-balanced studio environment earned them the Best in Practice prize at the 2020 NSW Institute of Architects Awards. The firm’s design work is characterised by excitement, playfulness and resilience, and is carefully attuned to nature and place.

For more of Carter Williamson Architects’ work, visit Carter Williamson Architects.

Meet the pattern book design team

Getting into the detail

Learn more about turning your pattern book project into reality with supporting guidance for designing your landscape and gaining fast-track planning approval.

Illustration of landscape design. Credit: Felix Saw
Illustration of landscape design.
Credit: Felix Saw

Complement your proposal with beautiful, resilient landscape designs.

Illustration of approvals process. Credit: Felix Saw
Illustration of approvals process.
Credit: Felix Saw

All patterns are eligible for fast-tracked assessment.

Preview or purchase this pattern

View the pattern drawings at no cost to help you select the most suitable pattern for your project.

To use the pattern for your planning application, you must purchase the full suite of documents, accept the terms and conditions and reference your unique identification number. When you pay the fee, you will receive technical drawings in PDF and DWG formats, a BASIX information sheet for this pattern, an editable design verification statement and your unique identification number.
